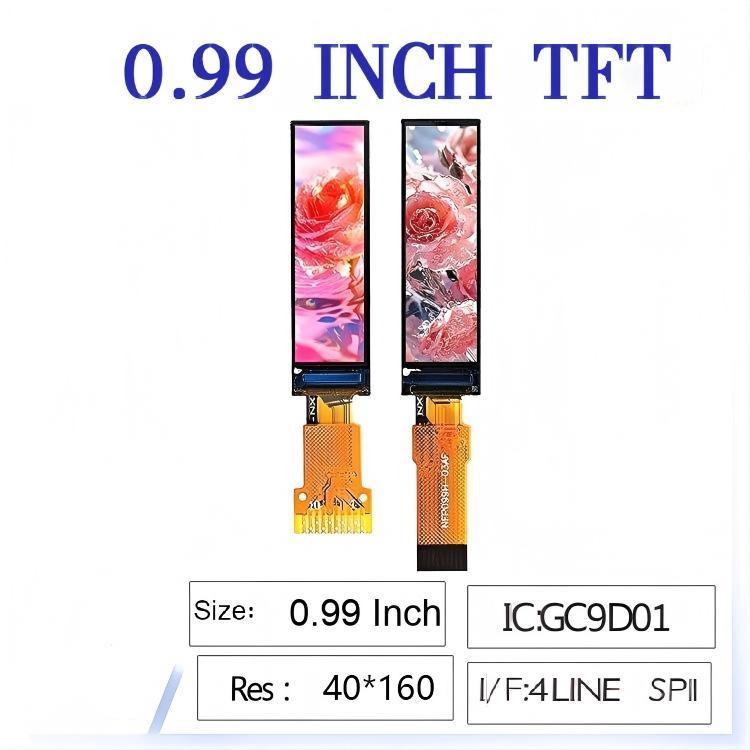

0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status

Brand Name : HuaXin

Model Number : HX099FHD010

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $1-$1.5

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT module

Name : tft panel

Display size : 0.99 inch

Resolution : 40*160

interface : 4 LINE MIPI

Driving IC : GC9D01

Brightness : 220C/D

view angle : all

Contact Now

【0.99-inch Long Strip IPS Screen】40×160 Resolution, High-Definition Wide Viewing Angle, GC9D01 Driver Chip. Suitable for Industrial Dashboards / Smart Wear Status Bars / Device Data Bars. Low Power Consumption, Easy to Integrate.
Key Specifications
Display Technology TFT module
Display Size 0.99 inch
Resolution 40×160
Interface
4 LINE SPI
Driving IC
GC9D01
Brightness 220C/D
View Angle All
Technical Parameters
Part No. HX099FHD010
Display Mode 0.99 inch TFT display
Outline Size (mm)
8.6(H)*29.8(V)*1.5(D) mm
AA Size (mm)
6.096(H)*24.384(V) mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Product Images

0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
TFT Product Knowledge

0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
Manufacturer Advantages
  • Cost-effective factory location in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
About Huaxin Technology (Enshi) Co., LTD

Located in Hubei Enshi, founded in 2009. High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation & printers
  • Video calls & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
